SPECIFICATIONS

Application 1: for Family, Farm, Factory, Office, Supermarket

Application 2: for Garage, Light, Automated curtains, Fan, Door, Gate, LED, Lamps, Motor

Brand Name: kebidu

Certification: CE

Channel: 1

Choice: yes

Feature 1: RF 433 Mhz Universal Gate Remote Control Switch

Feature 10: 12v remote control switch

Feature 11: 12v remote relay

Feature 12: 12v remote control module

Feature 13: 12v rf switch

Feature 14: diy wireless switch dc control

Feature 15: wireless fan controller

Feature 16: wireless relay receiver module

Feature 17: 1ch relay module

Feature 18: 12v relay with remote

Feature 19: mini relay with remote control

Feature 2: 1527 Learning Code Transmitter

Feature 20: relay transmitter

Feature 21: DIY Kit control remoto

Feature 3: For Garage controller

Feature 4: DIY Kit Remote Control

Feature 5: for Water Pump Motor LED/Electric Appliance

Feature 6: RF Transmitter 433 Mhz Remote Controls

Feature 7: For Led Lights Bulb DIY

Feature 8: For Door Electromagnetic lock

Feature 9: Rf Receiver Transmitter

Frequency: 433 MHz

Hign-concerned Chemical: None

Input voltage: DC 12V

Item Type: Switches

Model Number: RF Transmitter 433 Mhz Remote Controls,12V receiver controller

Origin: Mainland China

Package: No

Remote Distance: above 100 m ( open space)

Support APP: No

Support remote type: EV1527 learning code

Switch Type: Remote Control

Use: Universal,Lighting,Electric Door,Automated curtains,SWITCH

Wireless Communication: RF

Working current: 10A

semi_Choice: yes

Input Voltage: 12 V, RF working mode: Superheterodyne

• Receiver sensitivity: > 97 dbm

• Transmitting distance:> 100 m ( open space)

• Decoding mode: MCU software decoding

• Remote storage: 20

• Support remote type: EV1527 learning code

• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

• Output terminal: NO , NC , COM

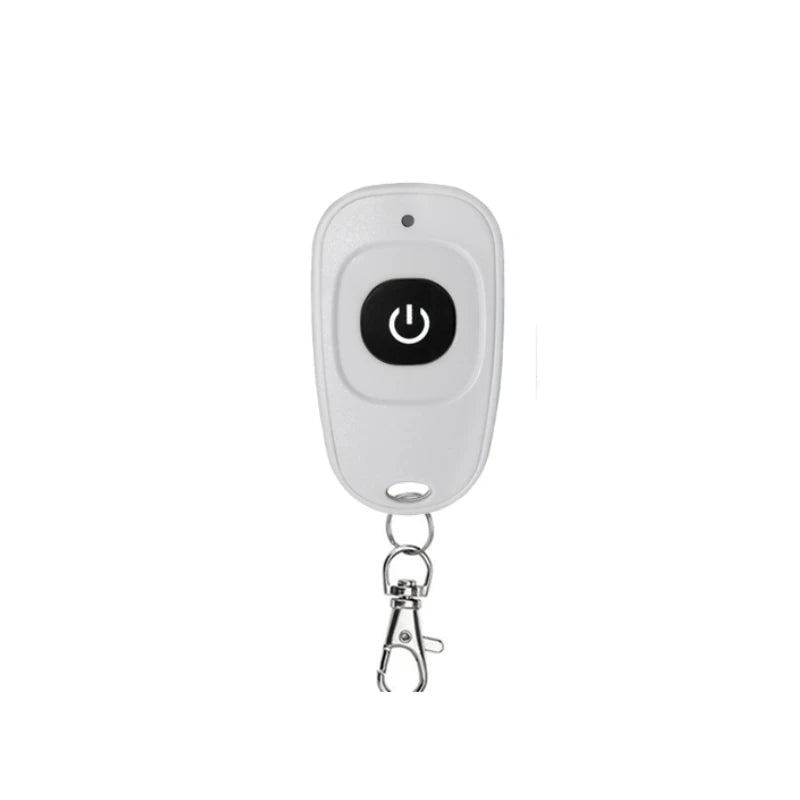

• Remote control battery: 2 x 3 V CR2016 button batteries

Note: Maximum input power is 250 V

Control Mode:

1). Self-Lock Mode: Press->On; Press again->Off (Need 1 channel switch and 1 remote control button.)

Press one button for working/ ON. Press the same button again for stopping/ OFF.

2). Inter-Lock Mode: Press->On; Press other button->Off (Need 1 channel switch and 2 remote control buttons.)

Press one button for working/ ON, press another button for stopping/ OFF.

3). Jog Mode: Press and hold->On; Release->Off (Need 1 channel switch and 1 remote control button.)

Keep pressing one button for working/ ON. Remove your finger for stopping/ OFF.

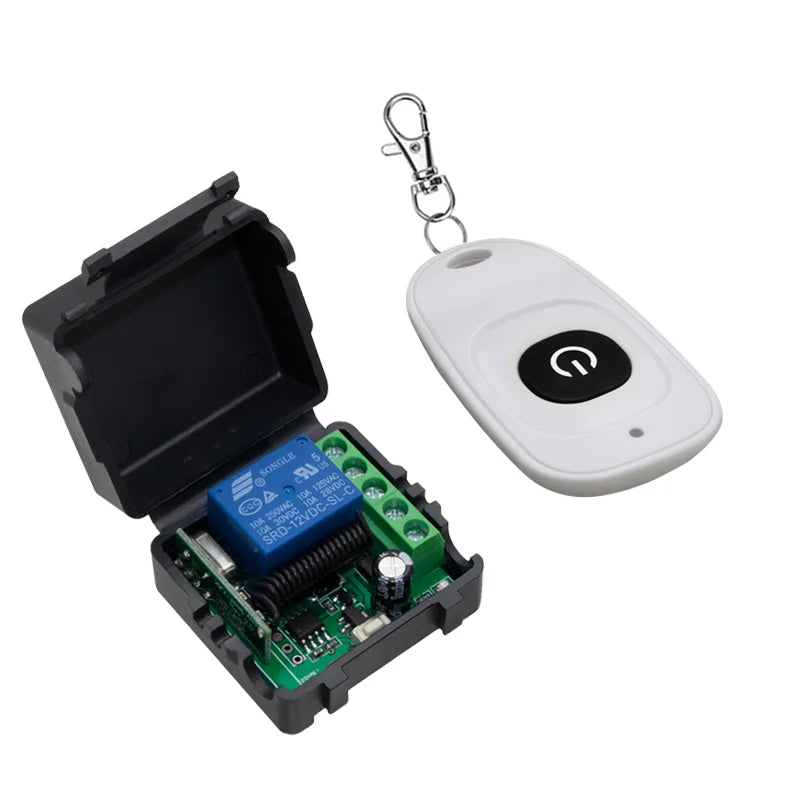

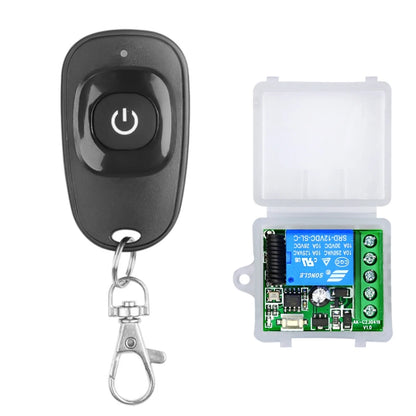

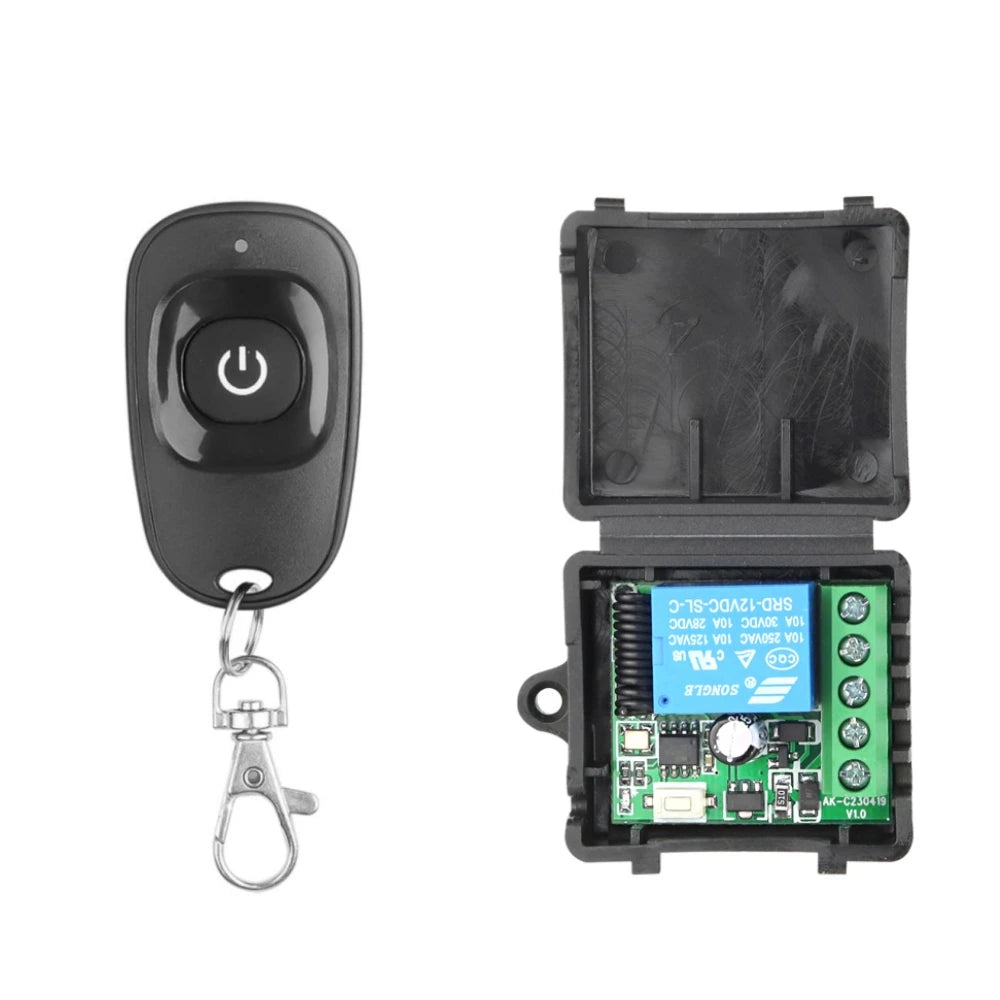

Black TX White RX / Black TX Black RX

Input Voltage: 12 V, RF working mode: Superheterodyne

• Receiver sensitivity: > 97 dbm

• Transmitting distance:> 100 m ( open space)

• Decoding mode: MCU software decoding

• Remote storage: 20

• Support remote type: EV1527 learning code

• Working mode: Momentary, toggle, latching time delay (5s ,10s ,15s )

• Output terminal: NO , NC , COM

• Remote control battery: 2 x 3 V CR2016 button batteries

Note: Maximum input power is 250 V

Operating Function Description

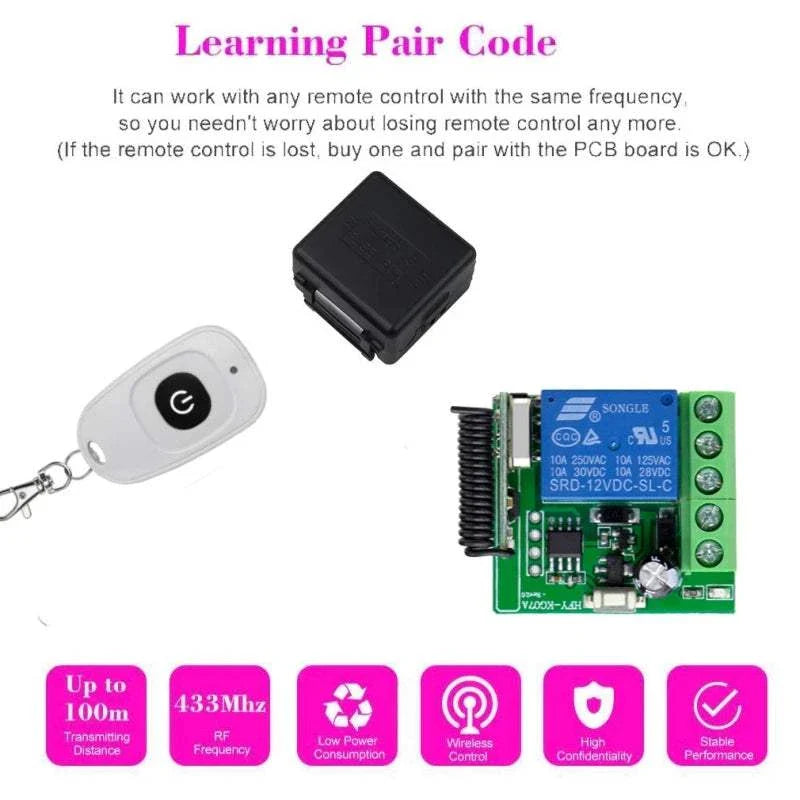

(1) Code learning operation
Inching learning code: After the controller is connected to the power, briefly press the learning code button (the light flashes once), and then long press the remote control button for 3 seconds. The controller indicator light flashes to indicate successful learning code, and the working mode is inching mode.
Self locking code learning: After the controller is connected to the power, briefly press the code learning button twice (once the light flashes), and then long press the remote control button for 3 seconds. The controller indicator light flashes to indicate successful code learning, and the working mode is automatic mode.
Interlocking code learning: After the controller is connected to the power, briefly press the code learning button three times (press once to flash the light once), and then long press and hold one button on the remote control for 3 seconds (such as key A). The controller indicator light flashes and remains on, and then press another button on the remote control (such as key B). The controller indicator light flashes to indicate successful code learning, and the working mode is interlocking mode (such as AB interlocking).
Delay for 5 seconds to learn code: After the controller is connected to the power, briefly press the learn code button four times (once the light flashes), and then long press the remote control button for 3 seconds. The controller indicator light flashes to indicate successful code learning, and the working mode is automatic shutdown mode with a delay of 5 seconds.
Delay of 10 seconds for learning code: After the controller is connected to the power, briefly press the learn code button five times (once the light flashes), and then long press the remote control button for 3 seconds. The controller indicator light flashes to indicate successful learning code, and the working mode is automatic shutdown mode with a delay of 10 seconds.
Delay for 15 seconds to learn code: After the controller is connected to the power, briefly press the learn code button six times (once the light flashes), and then long press the remote control button for 3 seconds. The controller indicator light flashes to indicate successful code learning, and the working mode is automatic shutdown mode with a delay of 15 seconds.
Delayed code learning by 20 seconds: After the controller is connected to the power, briefly press the code learning button seven times (once the light flashes), and then long press the remote control button for 3 seconds. The controller indicator light flashes to indicate successful code learning, and the working mode is automatic shutdown mode with a delay of 20 seconds.
(2) Clear code operation
Press and hold the learn code button on the controller for 5 seconds until the indicator light flashes, indicating successful code clearing.
(3) Clear code operation
Jog mode: After learning the code for a single button on the remote control, press the button relay to engage, and release the button relay to disconnect.
Self locking mode: After learning the code for a single button on the remote control, press the button relay once to engage and then press the button relay again to disconnect.
Interlock mode: After learning the codes for the two buttons on the remote control, press the A key to activate the relay, and press the B key to deactivate the relay.
Delay mode: After learning the code for a single button on the remote control, press the button relay to engage, and after the delay, it will automatically disconnect.
